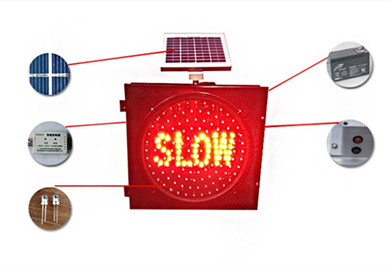

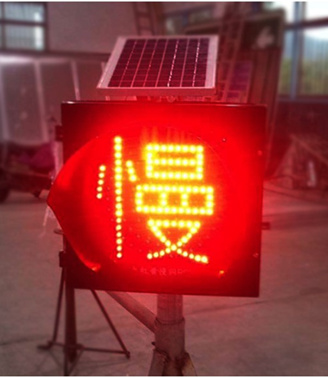

Solar traffic light/400mm slow traffic light

Advantage

1.Simple to install. No need external power, no need wiring.

2.Energy saving. Low-power, solar cell, low cost

3.High light: Using import EPISTAR chip from TaiWan, high light and slow light decay.

4.Sturdy and durable. PC & Aluminum Cover, shock resistance, anti-aging, anti-corrosion

5.Stable performance. Use America ATMEL single ship to protect circuit

6.Long working time.It can work over 200 hours or 8 rainy days after fully charged


Specification

Hoursing material:PC, metal gripping rim.

Solar panel:18V,10W single crystalline silicon solar cell

Battery: 12V,7Ah colloid and maintenance free battery DIN

Size of lighting: Dia 300mm

Wavelength of led: 590~595 nm

Flashing Frequence: 40 times/min

Visual range: over 1000m

Working time: work over 200 hours or 8 rainy das after full charged

Smart controller

1.Defense of charge protection.prevent electricity of battery to solar panel

2.Overcharge protection.prevent solar panel overcharge battery

3.Overload protection.It will turn off by itself when the electricity reached 1.5 times of normal, and then work again about 1~2 mins later.

4.Temperature correction. It will modify the charge and discharge when there is a change of temperature of battery.

5.Recovery interval. avoid its work shaking by the automatic-restoration characteristic of battery.

6.Other protection.

IMG_3302_副本.jpg 105_副本.jpg

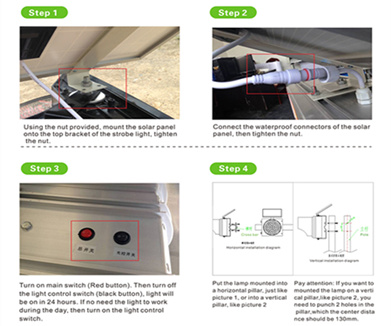

Instructions

1.Fixed the solar panel on the top of the strobe light,tighten the nut.

2.connect the waterproof connectors together between solar panle and strobe light

3.Red button for power and Black button for light control

4.Fixed the bracket of strobe light on the pole

Certification

Our products can meet with CE and ISO9001 certificate.Size and lighting can be customized. We promise to supply a high quality products and best service
